Stainless-steel Bracket (green state)

Pollen AM bracket MIM metal stainless steel 316L 3D printing 3D printer industrial pellets granules extrusion ceramic technical
Pollen AM bracket MIM metal stainless steel 316L 3D printing 3D printer industrial pellets granules extrusion ceramic technical
Pollen AM bracket MIM metal stainless steel 316L 3D printing 3D printer industrial pellets granules extrusion ceramic technical
Pollen AM bracket MIM metal stainless steel 316L 3D printing 3D printer industrial pellets granules extrusion ceramic technical
Part presentation

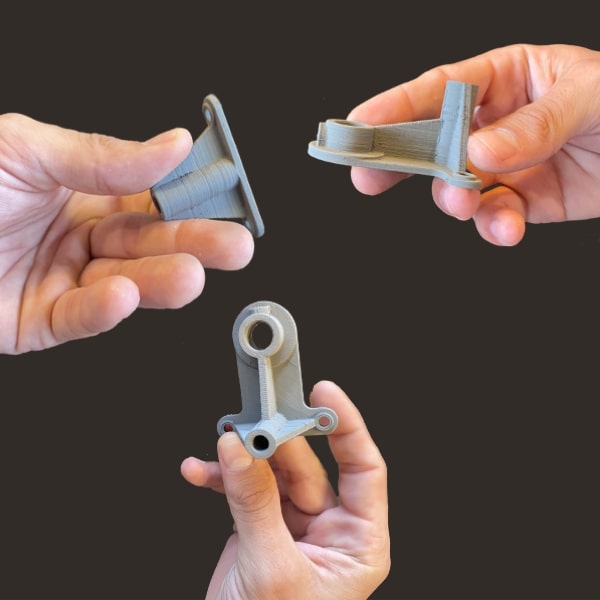

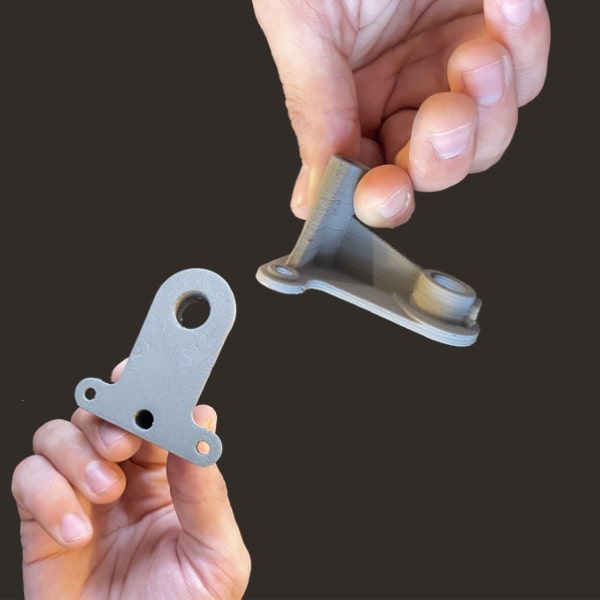

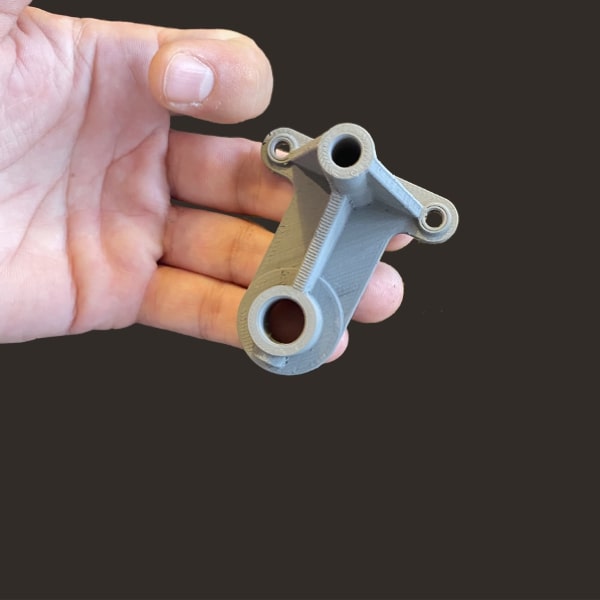

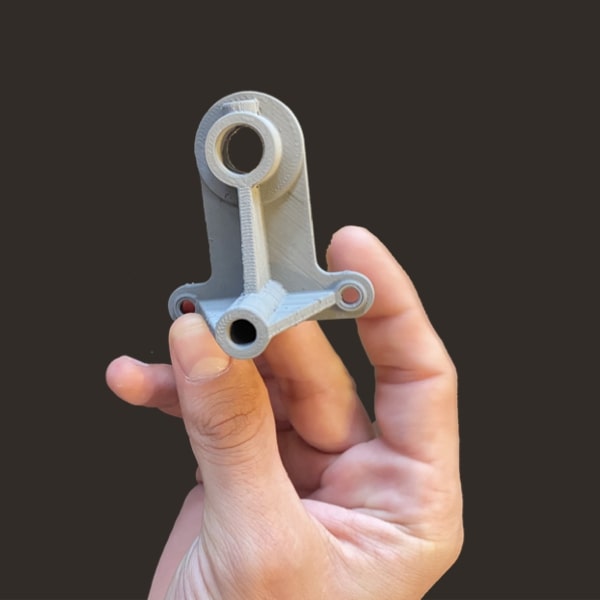

Manufactured with Pam Series MC, the 3D printer dedicated to metal and ceramic applications, this bracket is presented at the green stage (before debinding & sintering).
Brackets are good candidates for 3D printing, their geometries are adapted to the 3D printing process and they generally don't require support structures. When produced in small and medium scale, Pam’s process allows to significantly reduce the production & material costs.

Material information
  • Supplier: Polymim
  • Material: Stainless Steel
  • Grade: 316L (1.4404)

Contact us

Discover the MIM process

Process configuration

  • Printing time: 4h 20 mn
  • Nozzle size: Ø 0.4 mm
  • Part weight: 109.12 g
  • Layer height: 0.2 mm
  • Material cost: € 8.73
